Overview

HFW refers to High-Frequency Welding, a process used to create tubes by welding the edges of a strip of material using high-frequency electrical currents. This allows the tube to have a smooth surface and a high degree of strength, suitable for use in applications that demand reliability under pressure and temperature extremes.

Finned Tubes are tubes equipped with extended surfaces (fins) that are welded, soldered, or mechanically attached to the tube to increase the surface area for heat transfer.

In Alloy Steel HFW Finned Tubes, the finned design significantly boosts the heat transfer rate by providing a larger area for the transfer of heat between the fluid inside the tube and the surrounding air or external fluid.

These tubes are particularly useful in applications where heat needs to be exchanged rapidly, such as in heat exchangers, condensers, and evaporators.

1. High-Frequency Welding (HFW) Process:

• HFW stands for High-Frequency Welding, which is a process used to form the tubes. It involves passing an electrical current through the edges of the base tube and fin, generating enough heat to bond them together. This creates a strong weld between the fin and the tube, ensuring a durable and reliable connection.
• The HFW process offers several benefits:
  1. Precise and Consistent Welds: Ensures strong, uniform welds that can withstand pressure and temperature.
  2. Minimized Distortion: Since the process involves high-frequency currents, the welds are efficient and reduce the potential for heat distortion.
  3. No Filler Material Required: The process doesn't require external filler material, which makes it efficient and cost-effective.

2. Finned Tube Design:

• Finned tubes are tubes that have fins attached to their exterior surface to increase their heat transfer surface area.
• Purpose of Fins: The fins help to improve the efficiency of heat transfer by increasing the surface area, allowing for better heat dissipation or absorption. They are especially important when the fluid inside the tube (such as water, steam, or oil) needs to transfer heat efficiently to the surrounding air or another fluid.

3. Applications of HFW Finned Tubes:

• Heat Exchangers: The combination of fins and high-frequency welding creates efficient heat transfer in both air-cooled and water-cooled heat exchangers. These finned tubes are particularly useful in large heat exchange systems where high thermal efficiency is critical.
• Air Coolers and Radiators: They are used in systems designed to cool air or gases, where high heat transfer efficiency is essential.
• Furnaces and Boilers: The tubes are used in systems where high temperatures are present, such as in furnaces, boilers, or thermal power plants. The ability of these tubes to withstand high pressure and temperature makes them ideal for demanding environments.
• Condensers: In condensers, finned tubes improve the efficiency of heat exchange between steam and water. The increased surface area provided by the fins allows for faster condensation of steam.
• Industrial Cooling Systems: Any process requiring the cooling of high-temperature fluids can benefit from HFW finned tubes due to their efficient heat transfer properties.

4. Materials Used for HFW Finned Tubes:

• The base tubes can be made from a variety of materials depending on the application, including:

1. Carbon Steel
2. Stainless Steel
3. Alloy Steel (like P22 or P91)

• The choice of material depends on factors such as operating temperature, pressure, and corrosion resistance requirements.

5. Advantages of HFW Finned Tubes:

• Enhanced Heat Transfer Efficiency: The fins significantly increase the surface area available for heat transfer, improving the efficiency of the heat exchange process.
• Durability: High-frequency welding creates strong bonds between the fins and base tubes, ensuring the structure can handle high-pressure, high-temperature environments without failure.
• Corrosion Resistance: Using materials such as alloy steels and stainless steels enhances the tubes' resistance to corrosion, especially in challenging environments like petrochemical plants, power plants, or offshore applications.
• Cost-Effective Manufacturing: The HFW process is more cost-effective compared to traditional welding methods, making it a popular choice in manufacturing these tubes.

6. Common Industries Using HFW Finned Tubes:

• Power Generation: Used in steam boilers, thermal power plants, and air-cooled condensers to enhance heat exchange efficiency.
• Petrochemical Industry: For heat exchangers and coolers, especially in offshore platforms or refineries.
• HVAC (Heating, Ventilation, and Air Conditioning): Used in air conditioning systems, evaporators, and air coolers.
• Chemical and Pharmaceutical Industry: In reactors, distillation columns, and heat exchangers for chemical processing.

High Frequency Welded Finned Pipe

Power Plant Steel Fin Tube

Power Plant Finned Pipe

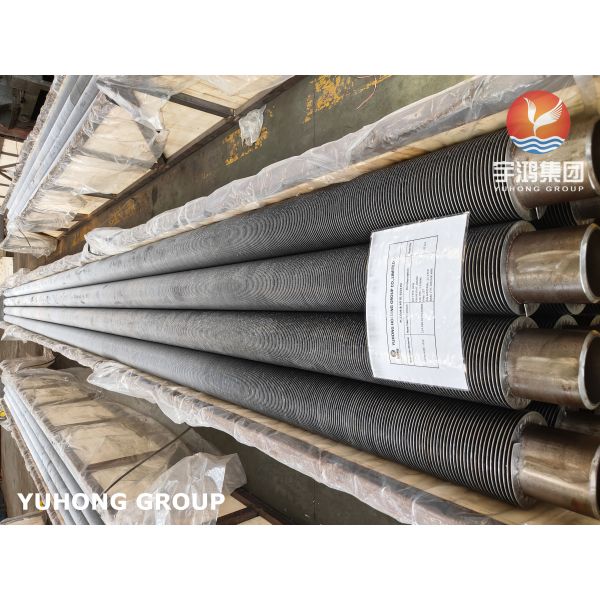

A335 P22 Alloy Steel Fin Tube High Frequency Welded Finned Pipe Power Plant Usage Images
